Impact Series

Contact Sales

When business is booming, maximize the IMPACT of your investment. Business is demanding and you need the kind of performance you expect from TITAN sprayers. It’s time to invest in the expanded features and performance that will make a major IMPACT on your profit margin. Titan IMPACT electric airless paint sprayers are the best-designed, best-performing and most popular sprayers in their class.

Key Features:

NEW! Quad+ Packings – designed to wipe abrasive coatings clean during operation, preventing damage to the piston or the main sealing lip

NEW! Auto-Oiler – with the push of a button you can deliver oil from the reservoir directly to the packings

NEW! Sureflo™ Pusher Valve lets you release stuck lower ball valve without using a hammer

Digi-Trak Control and Integrated Digital Display (available on selected units)

Dura-Life™ brushless HE motor (available on selected units)

EZ Tilt™ cart allows for easy clean-up and faster pail changes (available on selected units)

Easy Out™ fluid section (available on selected units)

These high-performance, light, medium and heavy-duty electric airless paint sprayers are designed for sustained operation on wide variety of projects, from a single room in a cottage to a warehouse or manufacturing facility. Recommended for serious contractors; prepared to invest in long-term performance.

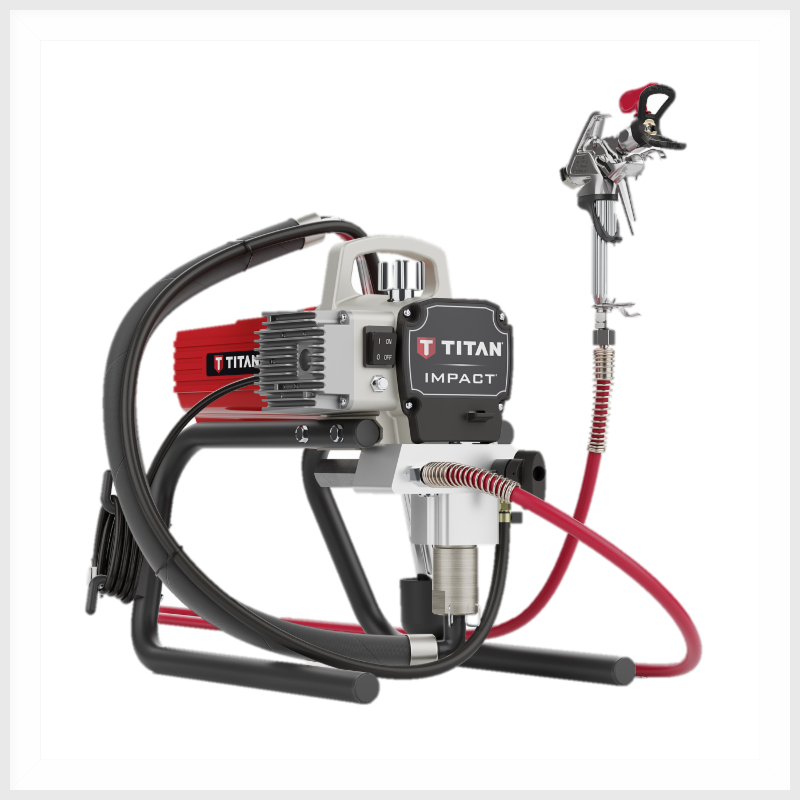

Impact 410

Contact Sales

The Impact 410 should feel familiar to Titan fans of old as a throwback to the durable and simple-to-service Advantage 400 (or if you’ve really been around the block, the SprayTech EPX2155). With mechanical pressure control, reversible seats, and the same packings as the Impact™ 440, the Impact 410 is a durable workhorse.

Related Links

Materials:
Stains, lacquers, enamels and latex.

Max. Delivery	.47 GPM
Max. Operating Pressure	3000 PSI
Max Tip Size	.021″
Maximum Hose Lenght	300′
Motor	.75 HP

Available Models

0532052	Skid
0532053	High-Boy

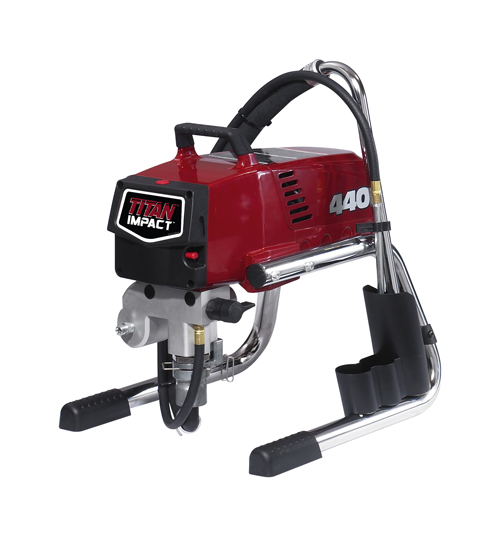

Impact 440

Contact Sales

The #1 selling sprayer in the industry is now even better! The Impact 440 is ideal for residential, property maintenance and small commercial applications.

Related Links

Materials:
Stains, lacquers, enamels and latex.

Max. Delivery	.54GPM
Max. Tip Size	.023″
Max. Operating Pressure	3300PSI
Weight (high rider)	59lbs.
(skid frame)	35lbs.
Motor	7/8hp DC Motor

Available Models

805-015	Skid Mount
805-016	High Rider

Impact 540

Contact Sales

Superior performance and reliability
Residential, municipality, property maintenance, rental and light commercial applications spraying up to 75-150 gallons per week

Related Links

Materials:
Stains, lacquers, enamels and latex

Features

Auto-Oiler
Dura-Life brushless HE motor
Sureflow pusher valve
Slow Prime
Heavy Duty stand and cart

Max. Delivery	0.60GPM
Max. Tip Size	0.024″
Max. Operating Pressure	3300PSI
Weight (high rider)	57lbs.
(low rider)	57lbs.
(skid frame)	33lbs.
Motor	1.2hp

Available Models

805-001	Skid Mount
805-003	Low Rider Cart
805-006	High Rider Cart

Complete with LX-80 gun, 517 SC-6, reversible tip and 1/4″ x 50′ airless hose.

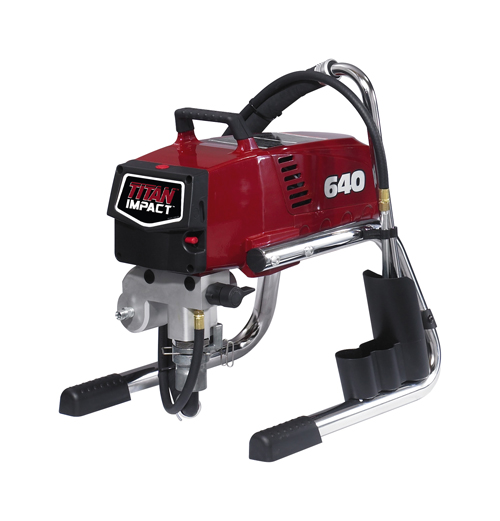

Impact 640

Contact Sales

Higher output and digital feedback
Residential, municipality, property maintenance, rental and light commercial applications spraying up to 75-150 gallons per week.

Related Links

Materials:
Stains, lacquers, enamels and latex.

Features:

Auto-Oiler
Dura-Life brushless HE motor
Digi-Trac control
Heavy duty stand
Easy load cart
Sureflow pusher valve
Semi full pneumatic tires

Max. Delivery	0.70GPM
Max. Tip	0.027″
Max. Operating Pressure	3300PSI
Weight (high rider)	57lbs.
(low rider)	57lbs.
(skid frame)	33lbs.
Motor	1.55hp

Available Models

805-002	Skid Mount
805-004	High Rider Cart
805-005	Low Rider Cart

Complete with LX-80 gun, 517 SC-6, reversible tip and 1/4″ x 50′ airless hose.

Impact 740

Contact Sales

Versatility and higher output deliver performance unparalleled in class!
Residential, commercial and industrial applications spraying up to 150-200 gallons per week.

Related Links

Materials:
Stains, lacquers, epoxies, latex and block fillers

Features:

Auto-Oiler
Dura-Life brushless HE motor
Digi-Trac control
Heavy duty stand
Easy load cart
Sureflow pusher valve
Semi full pneumatic tires

Max. Delivery	0.80GPM
Max. Tip Size	0.029″
Max. Operating Pressure	3300PSI
Weight (high rider)	85lbs.
(low rider)	85lbs.
Motor	2.0 hp

Available Models

805-007	High Rider Cart
805-008	Low Rider Cart

Complete with LX-80 gun, 517 SC-6, reversible tip and 1/4″ x 50′ airless hose.

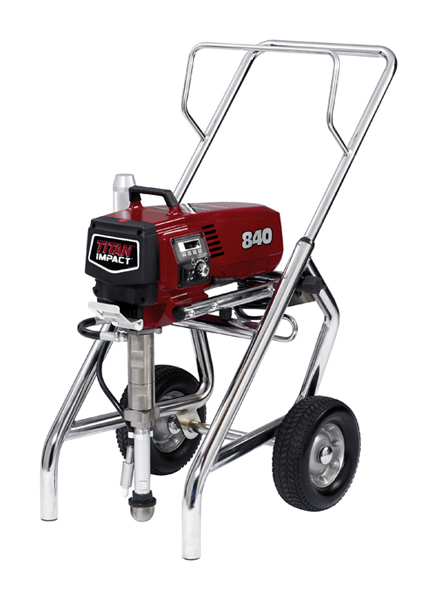

Impact 840

Contact Sales

Multiple gun unit, delivering performance and functionality!
Residential, rental, commercial and industrial applications spraying up to 200-300 gallons per week.

Related Links

Materials:
Stains, lacquers, epoxies, latex, dry fall and block fillers

Features:

Auto-Oiler
Dura-Life brushless HE motor
Digi-Trac control
Heavy duty stand
Easy load cart
Sureflow pusher valve
Semi full pneumatic tires

Max. Delivery	1.0GPM
Max. Tip	0.032″
Max. Operating Pressure	3300PSI
Weight (high rider)	85lbs.
(low rider)	85lbs.
Motor	2.3hp

Available as

805-009	High Rider Cart
805-010	Low Rider Cart

Complete with LX-80 gun, 517 SC-6, reversible tip and 1/4″ x 50′ airless hose.

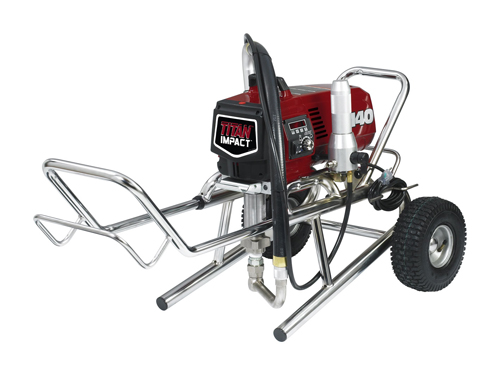

Impact 1140

Contact Sales

Multiple gun unit, delivering performance and functionality with long hoses and multiple tip sizes!

Related Links

Recommended for application using up to 2 guns in large residential, commercial and industrial applications where a wide range of coatings are specified.

300-400 gallons per week with up to 2 guns.

Materials:
Stains, lacquers, enamels and latex.

Sprays: Stains, lacquers, epoxies, enamels, elastomerics, latex, dry fall and block fillers

Features

Auto-Oiler
Dura-Life brushless HE motor
Digi-Trac control
EZ Tilt load cart
Heavy duty stand
Sureflow pusher valve

Max. Delivery	1.2GPM
Max. Tip	0.034″
Max. Operating Pressure	3300PSI
Weight (high rider)	95lbs.
(low rider)	95lbs.
Motor	2.6hp

Available Models

805-011	High Rider Cart
805-012	Low Rider Cart

Complete with LX-80 gun, 517 SC-6 reversible tip and 1/4″ x 50′ airless hose.
