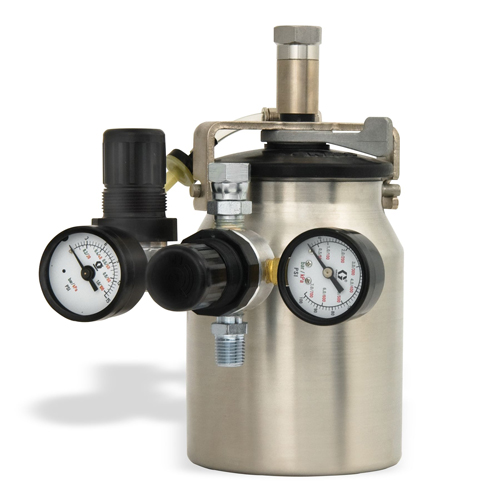

Pressure Tanks and Pressure Cups

Graco’s PTFE-coated pressure tanks feature single or dual regulators for low and medium volume applications.

RELATED LINKS

Available from 2 Liter (.53 Gal) to 5 Gallon (19 Liter) Capacity Features:

Materials:

Aluminum Non-ASME Pressure Tank

Part No.	Description	Tank Capacity	Max. Working Pressure	Relief Valve Setting	Fluid Inlet	Fluid Outlet	Air Inlet
171226	2-1/2 Gallon Pressure Pot	2.5 gal	50 psi	50 psi	1/4 npt(m)	3/8 npsm(m)	1/4 npt(m)
223833	Pressure Pot with Dual Regulators	2.5 gal	50 psi	50 psi	1/4 npt(m)	3/8 npsm(m)	1/4 npt(m)

Stainless Steel ASME Pressure Tanks

Designed for flexibility, these Stainless Steel ASME Pressure Tanks are available in 2, 5, 10, and 15-gallon (7.6, 18.9, 38, and 57 liter) models.

Features:

Materials:

Product Highlights:

Stainless Steel ASME Pressure Tank Models

			Models with Agitators		Models without Agitators
Capacity	Height	Weight	Low Pressure (HVLP) Regulated to 15 psi	High Pressure Regulated to 100 psi	Low Pressure (HVLP) Regulated to 15 psi	High Pressure Regulated to 100 psi
2 Gallon (8 liter)	26.0 in 25.4 in	38 lb 30 lb	236156 –	236158 –	– 236155	– 236157
5 Gallon (19 liter)	30.5 in 30.5 in	74 lb 65 lb	236146 –	236152 –	– 236143	– 236149
10 Gallon (38 liter)	33.9 in 33.9 in	85 lb 76 lb	236147 –	236153 –	– 236144	– 236150
15 Gallon (57 liter)	44.6 in 44.6 in	101 lb 92 lb	236148 –	236154 –	– 236145	– 236151
