Titan CAPSPRAY HVLP Turbine Sprayers

Contact Sales

When contractors need to apply the perfect finish, they turn to CAPSPRAY. The number one selling HVLP in the industry continues to offer the highest level of performance and control.

Related Links

High-end woodworking, cabinetry and furniture finishing projects require the high transfer efficiency only TITAN CAPSPRAY can deliver. These lightweight, portable HVLP sprayers will apply all fine finishes with speed and precision, maximizing productivity and profit.

Spray hard to atomize coatings with little or no thinning

  • High transfer efficiency ranges up to 90%
  • Dual air filtration with an automotive type air filter
  • Dual air filtration on the cooling air side

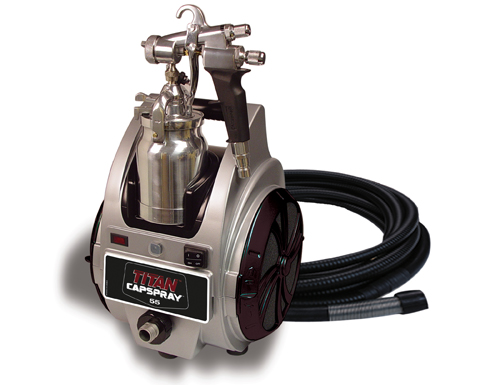

CAPSPRAY 55

Contact Sales

The perfect introductory 2-stage HVLP for new professionals or contractors who want to expand the scope of their business to include fine finishing projects. Designed to spray stains, light -bodied varnishes, shellac and lacquer.

Related Links

CAPSPRAY 55 is ideal for light to medium size residential finishing projects.

Features

  • Spray hard to atomize coatings with little or no thinning
  • High transfer efficiency ranges up to 90%
  • Dual air filters
  • Built in tool box for needles, nozzles, check valves and nozzle wrench
  • Built in cup and gun holder

Specifications

Air Pressure 5.5 PSI
Turbine 2-Stage Tangential
Hose length 20′
Gun Included Maxum II
Weight 16.5 lbs

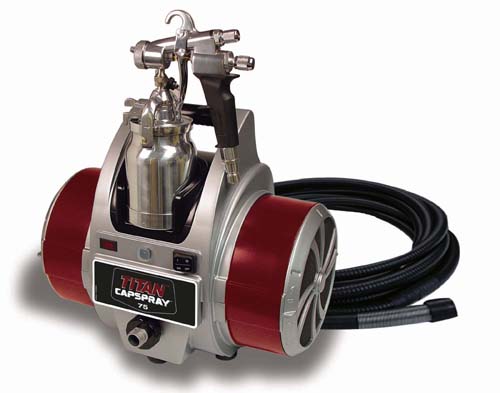

CAPSPRAY 75

Contact Sales

A step up in power and performance from the 55, the 3-stage CAPSPRAY 75 will handle enamel and multi-color coatings in addition to stains, sealers, light-body varnishes, shellac and lacquer. Recommended for medium-size residential or commercial projects.

Related Links

Features

  • Spray hard to atomize coatings with little or no thinning
  • High transfer efficiency ranges up to 90%
  • Dual air filters
  • Dirty filter warning light
  • Built in tool box for needles, nozzles, check valves and nozzle wrench
  • Built in cup and gun holder

Specifications

Air Pressure 7.5 PSI
Turbine 3-Stage Tangential
Hose length 30′
Gun Included Maxum II
Weight 21.0 lbs

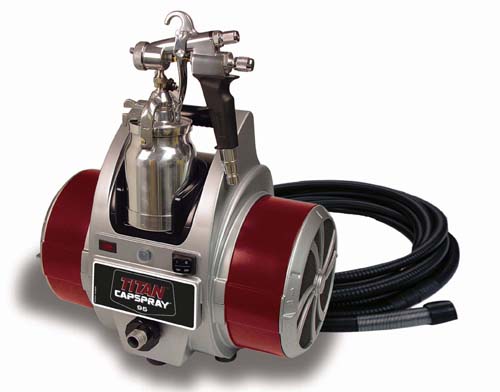

CAPSPRAY 95

Contact Sales

As business grows so does the size of projects. When more power is needed, professionals rely on the CAPSPRAY 95, a powerful, versatile 4-stage turbine unit designed to apply a wide range of coatings, from ultra-thin stains to heavy latex paint. Recommended for medium-size residential and commercial projects.

Related Links

Features

  • Spray hard to atomize coatings with little or no thinning
  • High transfer efficiency ranges up to 90%
  • Dual air filtration with an automotive type air filter and a pre filter on the atomizing side
  • Dirty filter warning light
  • Built in tool box for needles, nozzles, check valves and nozzle wrench
  • Built in cup holder

Specifications

Air Pressure 9.5 PSI
Turbine 4-Stage Tangential
Hose length Hose Length 30′
Gun Included Maxum II
Weight 22.5 lbs

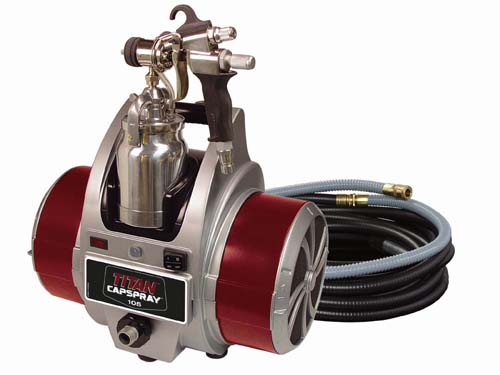

CAPSPRAY 105

Contact Sales

Larger projects involving heavier-bodied coatings require the 5-stage power and long-term dependability of the CAPSPRAY 105, a solid – but remarkably lightweight – workhorse HVLP capable of atomizing thick latex or solvent-based paints, enamels or varnishes with little or no thinning. This is the sprayer professionals use when projects expand or workshops fill with cabinets and furniture.

Related Links

Features

  • Spray hard to atomize coatings with little or no thinning
  • High transfer efficiency ranges up to 90%
  • Dual are filtration with an automotive type air filter with a pre filter on the atomizing air side
  • Dirty filter warning light
  • Built in tool box for needles, nozzles, check valve and nozzle wrench.
  • Built in cup holder
  • Comes with a #4 Proset

Specifications

Air Pressure 10.5 PSI
Turbine 5-Stage Tangential
Hose length 30′ + 5′ Whip
Gun Included Maxum Elite
Weight 23.5 lbs

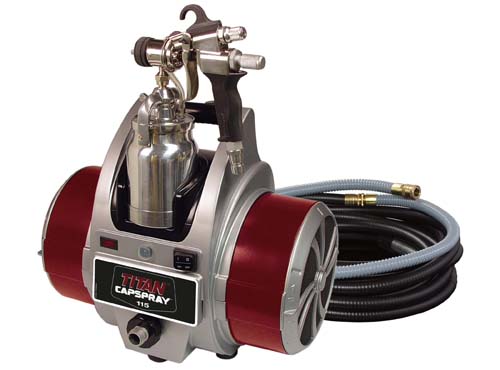

CAPSPRAY 115

Contact Sales

This revolutionary, 6-stage portable turbine spraying system is the only turbine ever to achieve full HVLP capability. It combines quiet operation and high air cap pressure for the finest atomization possible. CAPSPRAY 115 will apply nearly all fine finish coatings with little to no reduction.

Related Links

Features

  • Delivers the most power atomization in the industry
  • Wider fan patterns with speed and control to finish surfaces cleanly and perfectly the first time
  • Dual air filtration with an automotive type air filter with a pre filter on the atomizing side
  • Tool box for needles, nozzles, check valve and nozzle wrench
  • Built in cup and gun holder
  • Dirty filter warning light
  • High and low speed settings for 4-stage performance or 6-stage performance
  • A wide range of needle and nozzle offerings to apply everything from stains and varnishes to latex and texture finishes
  • Comes with a #4 and #5 Proset

Specifications

Air Pressure 11.5 PSI
Turbine 6-Stage Tangential
Hose length 30′ + 5′ Whip
Gun Included Maxum Elite
Weight 24.0 lbs

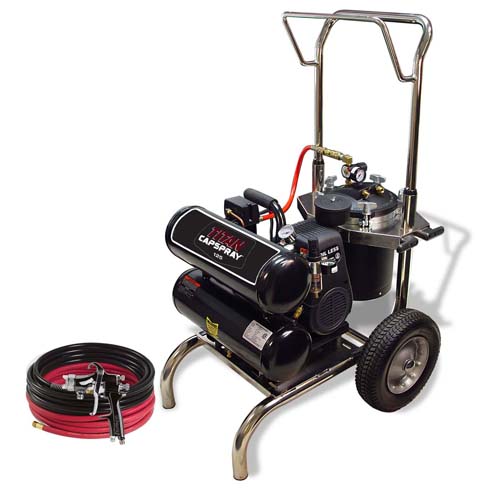

CAPSPRAY 125

Contact Sales

The 125 incorporates air compressor technology that allows the highest air cap pressure for the finest atomization possible. The presence of a 2.5 gallon pressure pot makes this the perfect sprayer for large scale residential, commercial, and industrial projects.

Designed for extended use on jobs where frequent quart cup refilling is not desirable. Recommended for fine finishing professionals and contractors with serious finishing projects.

Specifications

Pressure Pot Size 2.5 Gallon
Max. Fluid Pressure 0-10+ PSI
Max. Hose Length 60 FT
Compressor 2 HP
Unit Weight 110 LBS

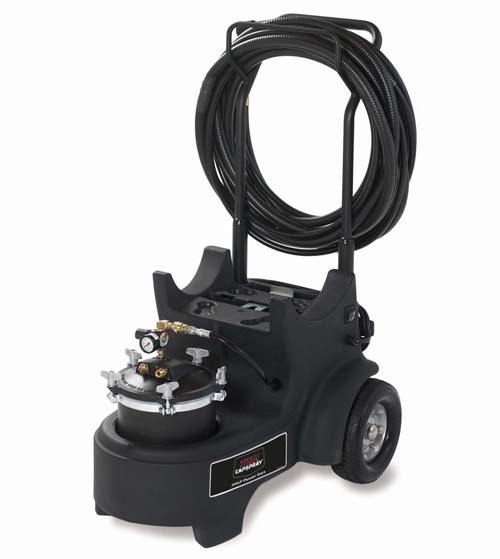

CAPSPRAY Power Cart

Contact Sales

When the project is so big that the standard one-quart or even the new Remote Cup System can’t handle the capacity, it’s time to invest in the CAPSPRAY Power Cart, a compact, lightweight solution to major application projects.

Ideal for jobs where mobility from one application area to another is critical to the speedy completion of the project.

Features

  • Higher performance compressor for greater material output.
  • Auto-Shut-Off for quieter operation, lower heat, greater efficiency and longer operating life
  • Positive lock mechanism for easy mounting of all CAPSPRAY turbine units
  • Solid polymer/steel construction combines strength and light weight
  • Convenient tool and gun storage compartments.
  • Exclusive telescoping handle for easy storage.
  • Hose wrap for easy storage of air and fluid hose.
  • 2.5 gallon pressure pot is powder-coated and equipped with regulator and gauge.
  • Pot liners available for easy clean up.

Specifications

Pressure Pot Size 2.5 GAL
Max. Hose Length 30′
Compressor 1/5 HP
Unit Weight 72 lbs
