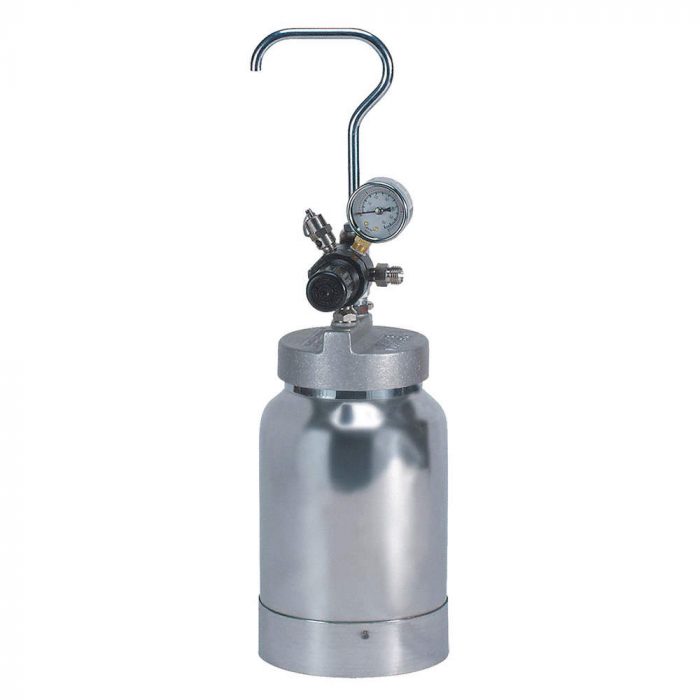

80-295 2 Quart Cup

Contact Sales

The Binks 80-295 pressure cup is a popular choice for component spraying and industrial applications where small batch production spraying is required. Its lightweight and rugged construction provides excellent portability. The 80-295 cup is pressurized, therefore the spray gun can be held at any angle without spitting or sputtering.

Related Links

Specifications:
Name:2 Quart Cup
Part Number: 80-295
Family:: Pressure Cups
Type:SG-2 Steadi-Grip

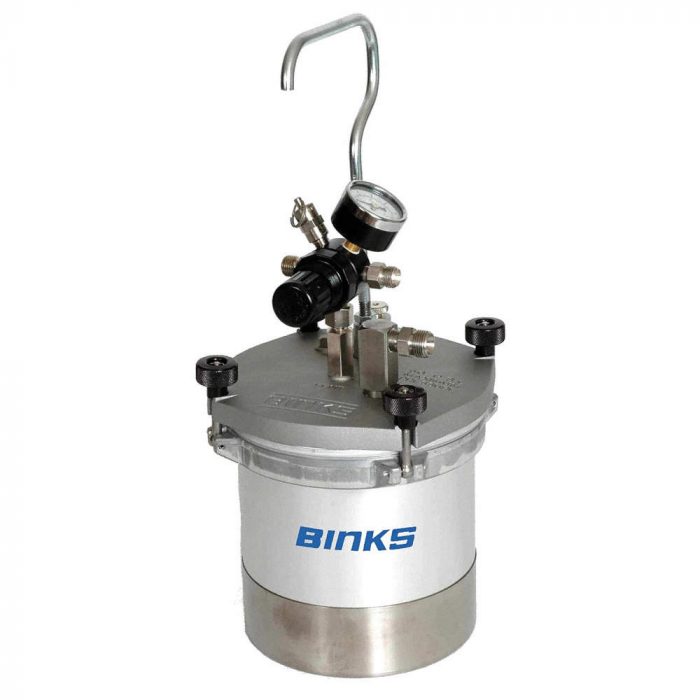

SG-2 Plus Steadi-Grip 2 Qt. Non-Agitated Pressure Cup

Contact Sales

Binks SG-2 Plus Steadi-Grip non-agitated 2 quart pressure cup is ideal for component spraying and small batch production. Lightweight, rugged and portable. Wide mouth cup opening.

Related Links

Specifications:
Part Number: 80-600
Family:Pressure Cups
Type:SG-2 Steadi-Grip
Max Output Pressure: 50 psig (3.5 kg/cm2)
Wetted Materials: Aluminum, Stainless Steel
Air In: 1/4″ NPS(m), 0 to 10 psig (0-.7 bar)
Fluid In: 3/8″ NPS(m)
Capacity:2 Quart
Regulation:yes
Agitator:None
Liners:80-356 plastic liner (box of 12)
Weight:4 lbs. 14oz. (2.2 kg.)

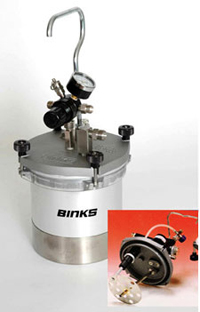

SG-2 Plus Steadi-Grip 2 Qt. Agitated Pressure Cup

Contact Sales

Binks SG-2 Plus Steadi-Grip paddle agitated (up and down) 2 quart pressure cup is ideal for component spraying and small batch production. Lightweight, rugged and portable. Wide mouth cup opening. This model is suitable for non-metallic coatings that require constant agitation, (For True metallic coatings, see Binks 80-651 prop agitated).

Related Links

Specifications:
Part Number: 80-601
Family:: Pressure Cups
Type:SG-2 Steadi-Grip
Max Output Pressure: 50 psig (3.5 kg/cm2)
Wetted Materials: Aluminum, Stainless Steel
Air In: 1/4″ NPS(m), 0 to 10 psig (0-.7 bar)
Fluid In: 3/8″ NPS(m)
Capacity:2 Quart
Regulation:yes
Agitator:paddle agitator (up and down)
Liners:80-356 plastic liner (box of 12)
Weight:5lbs. 7oz. (2.5 kg)

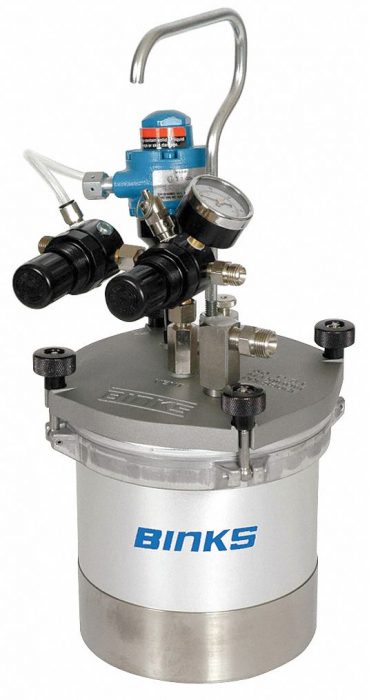

SG-2 Plus Steadi-Grip 2 Qt. Prop Agitated Pressure Cup

Contact Sales

Binks SG-2 Plus Steadi-Grip Propeller agitated (rotary) 2 quart pressure cup is ideal for component spraying and small batch production. Lightweight, rugged and portable. Wide mouth cup opening. The prop style non-magnetic agitator is ideal for metallic coatings that require constant agitation. Suitable for waterborne and solvent borne materials.

Related Links

Specifications:
Part Number: 80-651
Family:: Pressure Cups
Type:SG-2 Steadi-Grip
Max Output Pressure: 50 psig (3.5 kg/cm2)
Wetted Materials: Aluminum, Stainless Steel
Air In: 1/4″ NPS(m), 0 to 10 psig (0-.7 bar)
Fluid In: 3/8″ NPS(m)
Capacity:2 Quart
Regulation:air and fluid controls
Agitator:propeller (rotary
Liners:80-356 plastic liner (box of 12)
Weight:: 7lbs 5oz. (3.3 kg)
