Hydra Series

Contact Sales

Bridges, water tanks and other giant scale projects require the kind of hydraulic piston power only a Titan Hydra can deliver. It is the ultimate sprayer for any commercial or industrial job where maximum power and pressure are required and dependability is critical.

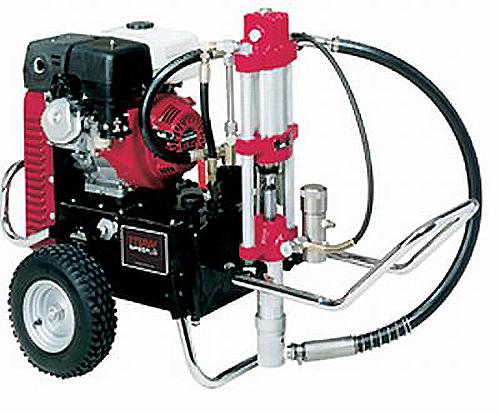

Hydra Pro IV

Contact Sales

A World-Class Workhorse – Hydras feature more horsepower and ultra-high capacity hydraulic systems for constant use in multiple gun applications.
Hydras are designed to spray most ultra-heavy coatings on commercial, industrial and roofing projects.

Related Links

Features

  • Built for the Really Tough Jobs!
  • Longest Slowest Stroke for Maximum Life
  • Ultra-high Capacity Hydraulic System Keeps Its Cool in the Harshest Conditions
  • Hand-tight Cylinder and Foot Valve for Quick and Easy Maintenance
  • Severe Service 500™ Hard Chrome Piston and Cylinder for Extra Long Life
  • Spring-Loaded Self-adjusting UHMWPE Packing System Eliminates Premature Wear From Over-Tightening

Specifications:

Gas Engine 8HP Honda
Max. Tip Size 1 gun – .050”
2 guns – .035”
3 guns – .029”
4 guns – .025”
5 guns -.021”
Max. Flow 2.5 gpm (9.5 lpm)
Max. Operating Pressure 3,300 psi (228 bar)
Cycles Per Gallon 20
Paint Outlet Filter 50 Mesh
Filter Area 18 sq in
Weight 350 lbs – Gas

Available Models

433-820 Hydra Model w/Filter

Hydra M 2000 Hydraulic Sprayer

Contact Sales

A World-Class Workhorse – Hydras feature more horsepower and ultra-high capacity hydraulic systems for constant use in multiple gun applications.
Hydras are designed to spray most ultra-heavy coatings on commercial, industrial and roofing projects.

Related Links

Features

  • Built for the Really Tough Jobs!
  • Longest Slowest Stroke for Maximum Life
  • Ultra-high Capacity Hydraulic System Keeps Its Cool in the Harshest Conditions
  • Hand-tight Cylinder and Foot Valve for Quick and Easy Maintenance
  • Severe Service 500™ Hard Chrome Piston and Cylinder for Extra Long Life
  • Spring-Loaded Self-adjusting UHMWPE Packing System Eliminates Premature Wear From Over-Tightening

Specifications:

Gas Engine 13HP Honda Electric Start
Max. Tip Size 1 gun – .075”
2 guns – .053”
Max. Flow 6.0 gpm (22.7 lpm)
Max. Operating Pressure 2,000 psi (137 bar)
Cycles Per Gallon 7
Paint Outlet Filter N/A
Filter Area N/A
Weight 385 lbs – Gas

Available Models

433.860 433.860 Hydra Model with Outlet Manifold
433.861 433.861 Hydra Model, 55 gal Remote

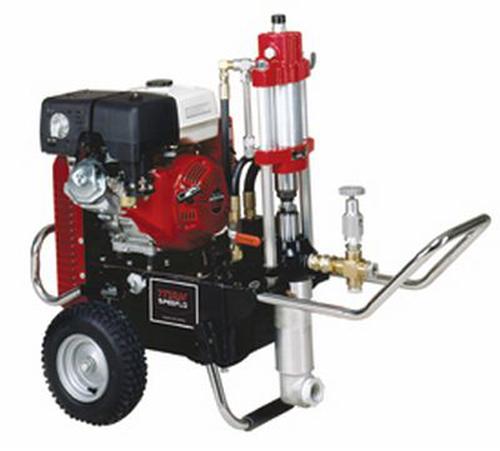

Hydra M 4000

Contact Sales

A World-Class Workhorse – Hydras feature more horsepower and ultra-high capacity hydraulic systems for constant use in multiple gun applications.
Hydras are designed to spray most ultra-heavy coatings on commercial, industrial and roofing projects.

Related Links

Features

  • Built for the Really Tough Jobs!
  • Longest Slowest Stroke for Maximum Life
  • Ultra-high Capacity Hydraulic System Keeps Its Cool in the Harshest Conditions
  • Hand-tight Cylinder and Foot Valve for Quick and Easy Maintenance
  • Severe Service 500™ Hard Chrome Piston and Cylinder for Extra Long Life
  • Spring-Loaded Self-adjusting UHMWPE Packing System Eliminates Premature Wear From Over-Tightening

Specifications:

Gas Engine 13HP Honda Electric Start
Max. Tip Size 1 gun – .060”
2 guns – .040”
3 guns – .035”
4 guns – .029”
5 guns – .025”
Max. Flow 3.3 gpm (12.5 lpm)
Max. Operating Pressure 4,000 psi (274 bar)
Cycles Per Gallon 13
Paint Outlet Filter 50 mesh
Filter Area 18 sq in
Weight 370 lbs – Gas

Available Models

433-800 Hydra Model w/Outlet Manifold
433-801 Hydra Model with Filter
433-802 Hydra Model, 55 gal Remote
433-807 Special Foundation Model
