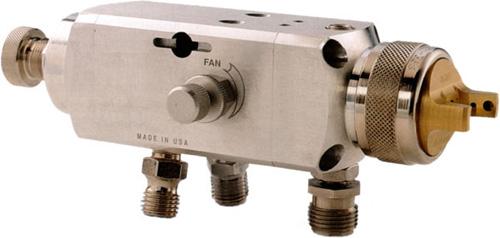

AGX-550 Automatic

Contact Sales
(Standard)

Built to withstand the rigors of high-speed production lines and harsh finishing conditions, the AGX automatic air spray gun is engineered for rugged reliability. Designed for use with industrial robots, reciprocators and stationary mounting, the AGX spray gun’s compact size allows mounting in tight areas. Simplified gun design for greater reliability and ease of maintenance. Detachable spray head for fast needle packing replacement. AGX-550 spray gun comes with a 400-grade stainless steel tip for use with many waterborne materials and chlorinated solvents. AGX models include 300-grade stainless steel fluid passages. Circulating capability standard.

Related Links

Specifications:
Body: Machined aluminum
Weight: 26 oz (728 gr) without mounting stud, 30.5 oz (854 gr) with mounting stud
Air Inlet: 1/4″ NPS (M)
Fluid Inlet: 3/8″ NPS (M)
Fluid Passages: 300 grade stainless steel
Feed Type: Pressure feed
Gun Repair Kit: KK-4992-1
