Graco XM Plural-Component Sprayer

Contact Sales

Precise ratio assurance in a fully configurable system

Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

At the heart of the ratio control is Graco’s advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures. Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste.

Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit. Then select the accessories you need. You get exactly what you need. No more. No less.



  • New dosing technology assures accurate, on-ratio mixing for better yield and less waste
  • Advanced, intuitive user controls provide real-time display of ratio
  • USB port lets you easily access and download historical spraying data
  • Supports multiple spray guns for added productivity
  • Allows for easy crane transport with eye hooks on air motors
  • Variable ratio system – handles material ratios from 1:1 to 10:1


  • Plural-component coatings
  • High to ultra-high viscosity coatings
  • High-solids epoxy primers and coatings
  • High-solids polyurethane top coatings
  • Fire-retardant coatings


  • Towers for wind turbines
  • Fleet maintenance and shipbuilding
  • Marine applications
  • Railcar manufacturing and repair
  • Pipe and tank coating
  • Structural steel

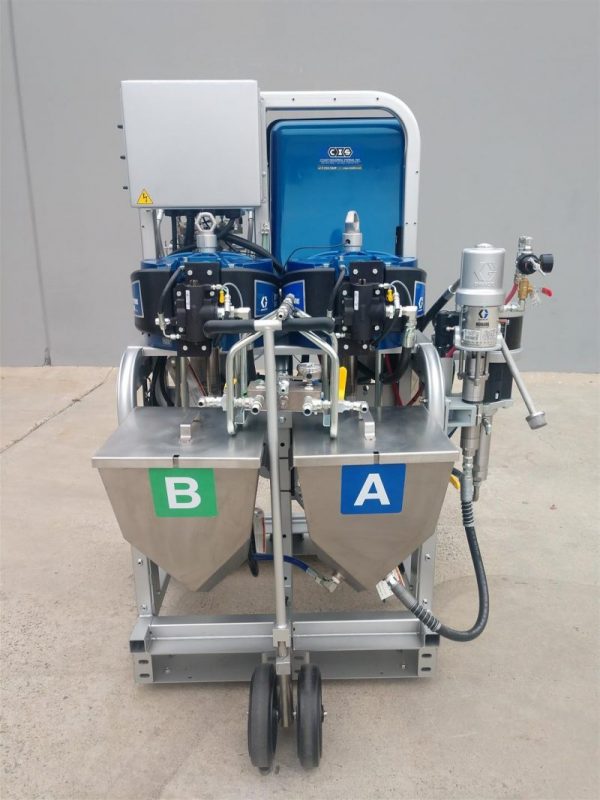

The Graco XM base model includes:

  • Heavy-duty carbon steel frame with built-in pallet rack
  • Xtreme Pumps and flush pump
  • Standard or remote-mount mix manifold, dosing valves
  • XTR-7 Gun, Xtreme-Duty Hose and two static mixers
  • Controls, USB port, USB flash drive
  • Recirculation kit
  • Your choice of power supply

Boost your productivity on demanding, high-volume jobs with the Graco XM.

Which XM is Right for You?

Contact Sales

The XM line of sprayers is uniquely set-up to improve the way you spray and mix protective coatings materials.

Mix Ratio Range 1:1 to 10:1 (in 0.1 increments) 1:1 to 10:1 (in 0.1 increments)
Minimum Flow Rate 1 qt/min (0.95 lpm)* 1 qt/min (0.95 lpm)*
Maximum Flow Rate 3 gpm (11.4 lpm)* 3 gpm (11.4 lpm)*
Maximum Mixed Fluid Working Pressure 5200 psi (358 bar, 35.8 MPa 6300 psi (434 bar, 43.4 MPa)
Maximum Pump Air Set Pressure 100 psi (7.0 bar, 0.7 MPa) 90 psi (6.2 bar, 0.62 MPa)

* Actual flow rates vary by material type


XM Sprayer Accessories

Contact Sales

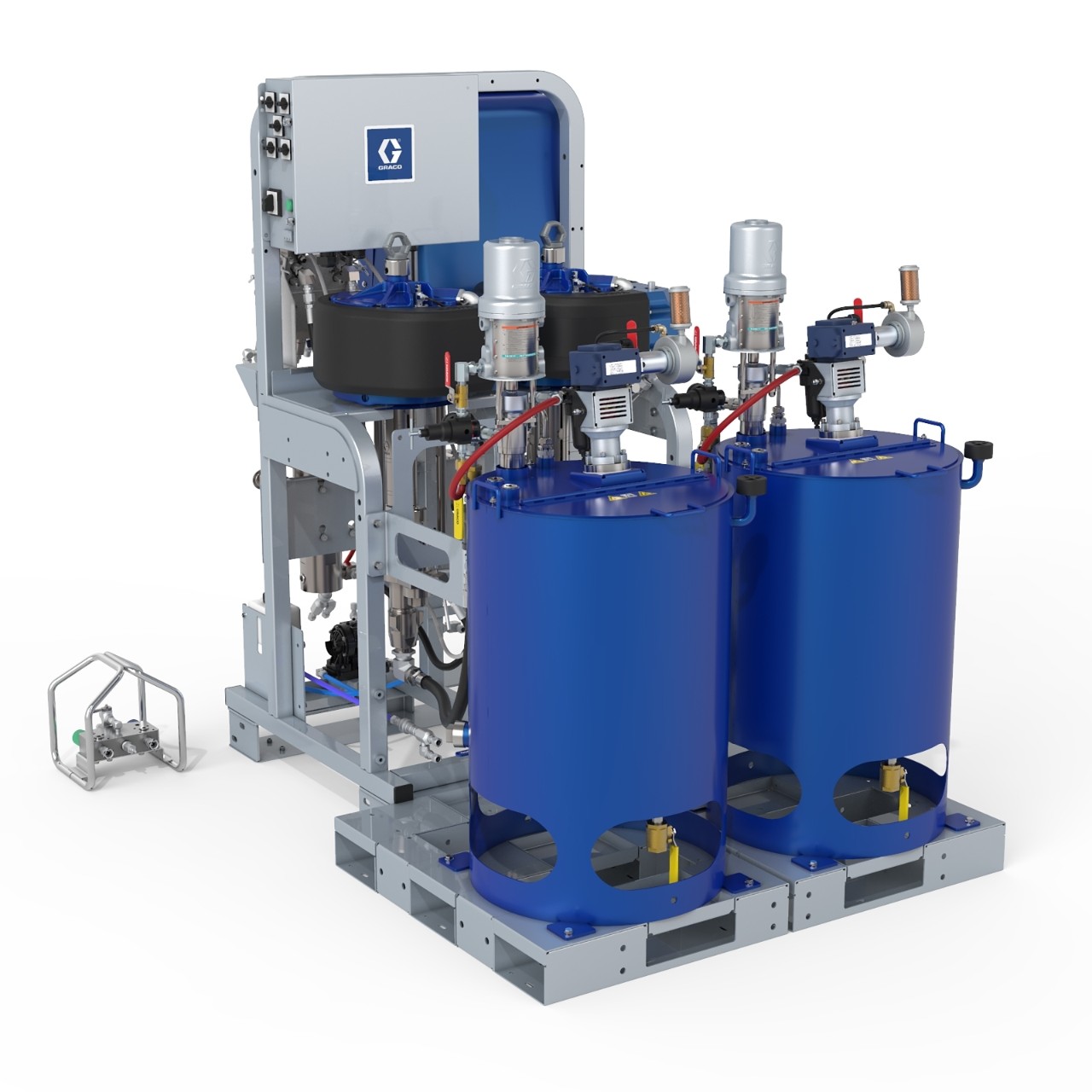

SST Lined Heated Tanks Polyethylene Heated Hoppers 7 gal (27 L) Plastic Hopper 10 gal (38 L) SST Hopper
• 25 gal (95 L) double-walled tank • 20 gal (76 L) double-walled hopper • Gravity feed with recirculation port • Gravity feed with recirculation port
• 3000W Immersion heaters • Set up for gravity or pressure feed • Blue for resin, green for hardener • Flat surfaces clean with ease
• Xtreme-Duty agitator • Accepts both agitator and feed pump • Includes hardware to bolt onto XP cart
• 5:1 Monark feed pump • Jacketed for heated water/glycol or oil
• Gravity or pressure feed • Tank heat using immersion heaters or Viscon™ HP heated circulation
• Floor or caster mount

Merkur® Solvent Flush Pump Xtreme-Duty® Drum Agitator Xtreme Pump Lowers Viscon® Fluid Heaters
• Quickly flushes mixed materials from hose and gun • Designed specifically with
protective coatings materials in mind
• Change one or both lowers for desired mix ratio • Reduces viscosity so it can be sprayed at lower pressure
• Provides enough pressure to push good paint out the mix hose with a spray pattern • Special blades are designed
to keep high viscosity materials in suspension
• XP uses specific Xtreme pump lowers with spring-loaded inlet valves, 30 mesh filters, and no prime valves • Provides consistent spray temperature,
resulting in consistent spray pattern and better thickness control
• Prime valve can be used to supply flush solvent for tip cleaning, or flush a second hose and gun that have been removed from the tee in the mix line • Better mixing and quality control
of your high solids coatings
• Overpressure rupture protection included on 36 cc, 48 cc, 54 cc, 58 cc and 72 cc sizes • Mounts easily to slotted holes (requires heater mounting kit 262450)

Graco Gun Splitter Remote Mount Mix Manifold Recirculation Kits
The Graco Gun Splitter lets you use two spray guns with one PluralComponent Sprayer. In addition, you can independently clean and flush one gun, while the other gun remains in use. If you’re using a higher production machine, the Gun Splitter helps you become even more productive. • Mix manifold on sprayer is removable and can be located closer to the spray gun to reduce the volume of mixed
coatings and required flush solvent – results in less wasted materials
• A and B hoses from the sprayer to the mix manifold don’t need to be flushed and can be sized for less pressure loss over long distances
• Manifold is heated when using water/glycol heated hose
• Recirculate material through heated hose back to hoppers with ease
• No need to disconnect hoses from manifold
• Adapts to all XP and XM systems
