CIS XM Plural Component Sprayer

Contact Sales

Advanced Technology and Accurate Ratio Control

CIS XM Plural-Component Sprayers are designed to spray the toughest plural-component materials, with the assurance that you’re spraying accurately and on-ratio. Ideally suited for marine, bridge, rail and wind energy applications, each CIS XM is fully configurable.

Click on the search icons to view more details.

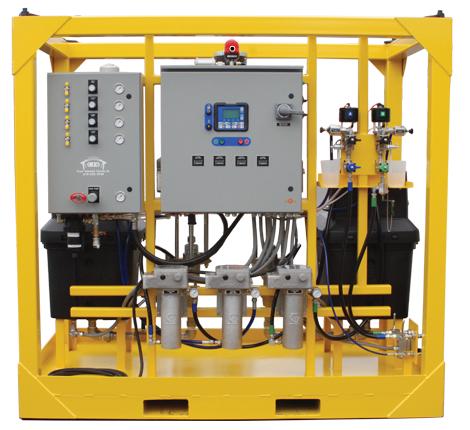

Front

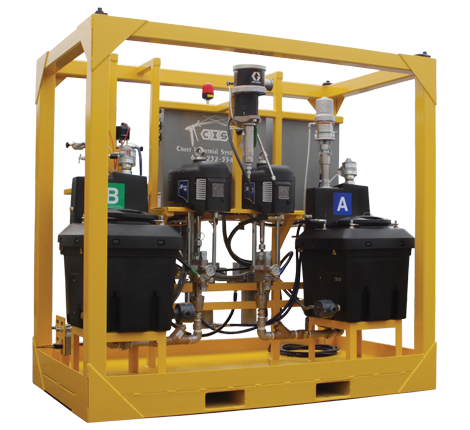

Back

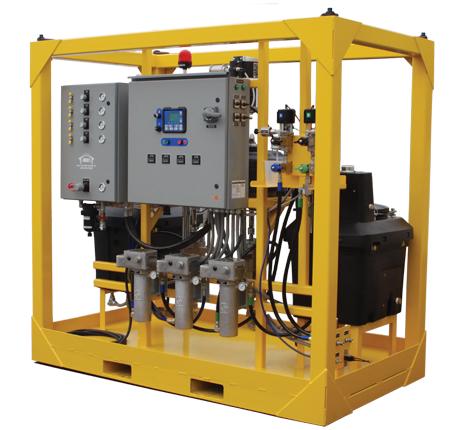

Alternative

Pneumatic Control Panel

Single location for control of main air and ancillary equipment

Intuitive User Controls

Real-time display of ratio, flow-rate,pressure, paint & water temperatures. USB drive for data reporting.

Nema 4 Control Panel

UL 783 Main Disconnect. Branch circuit protector. 11/240/480v

Vinyl Cover

Remote Manifold

A & B temperature sensors at remote manifold.

Immersion Heaters

Heavy duty construction. 110 / 240 / 480v, 1500watt.

Sovent Flush Pump

Merkur 45:1

Xtreme Pump Lowers

Fluid filtration & Easy serviceability access.

Recirulation Pump

Monark 5:1

Twistork Agitator

Helps maintain proper material consistency

Viscon Fluid Heaters

A & B material heaters. Recirculation heater. 110 / 240 / 480v

Dosing Valves

Provides precision mixing and accurate ratio control. User friendly recirculation controls.

Single Point of Connection

A & B material lines. Solvent flush line. A & B Remote manifold temperature.

Swivel Lifting Eyes

5000# each

Available in the following colors:

Specifications
Dimensions 84.5H x 90.5W x 50.50 in (214.6 x 229.9 x 128.3 em)
Mix ratio range 1:1 to 10:1 (in 0.1 increments)
Ratio tolerance range +I- 5%
Fluid filtration 60 mesh (238 micron standard)
Flow rates
Minimum 1 qUmin (0.95 lpm)*
Maximum 3 gpm (11.41pm)*
*Actual flow rates vary by material type
Spill Containment 80US Gallons
Air inlet 3/4 npt (f)
Fluid inlets 1-1/4 npt (m)
Max mixed fluid working pressure
50:1 5200 psi (358 bar, 35.8 MPa)
70:1 6300 psi (434 bar, 43.4 MPa)
Air supply pressure range 50-150 psi (3.5 to 10.3 bar, 0.35 to 1.0 MPa)
Max pump air set pressure
50:1 100 psi (7.0 bar, 0.7 MPa)
70:1 90 psi (6.2 bar, 0.62 MPa)
Max pump inlet fluid pressure 250 psi (17 bar, 1. 7 MPa)
Max air consumption at 100 psi (0.7 MPa, 7.0 bar) 75 scfm/gpm (0.56 m3/min/lpm)
Ambient temperature range
Operating 32° to 130°F (0° to 54°C)
Storage 30° to 160°F (-1° to 71°C)
Weight 2850 lb (1293 kg)
Sound pressure 86 dBAat 100 psi (7.0 bar, 0.7 MPa)
Fluid viscosity range 200-20,000 cps(heavier viscosities can be sprayed using heat, recirculation and/or pressure feeding)
Wetted parts
Suction tubes Aluminum
Flush pump Stainless steel, aluminum, carbide, UHMWPE and PTFE
Hoses Nylon
Pumps (A and 8) Carbon steel, alloy steel, 303, 440, 17 -ph grades stainless steel, zinc and nickel plating, ductile iron, tungsten carbide, and PTFE
Metering valves Carbon steel, nickel plating, carbide, polyethylene, leather
Manifold Carbon steel, nickel plating, carbide, 302 stainless steel,PTFE, UHMWPE
Mixer Stainless steel housing with acetal elements
Spray gun Stainless steel, acetal, polyethylene, nylon, polypropylene, carbide, polyurethane, solvent-resistant o-rings
