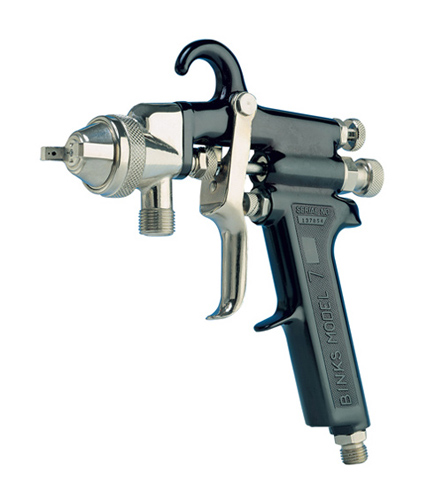

Model 7

The Model 7 spray gun is used for all production spraying, but is recommended primarily for siphon use. Its features include:

• Drop forged aluminum body
• Large air passages
• Plated drop forged brass head
• Adjustable floating fluid needle valve
• Stainless steel air valve cartridge
• Controls at the back of the gun
• Adjustable spray pattern

RELATED LINKS

• Model 7 Sales Information
• Model 7 Service Information

Specifications:
Part Number: 6100
Gun Category: Conventional
Gun Type: Manual
Fluid Passages: Stainless Steel
Fluid Inlets: 3/8″ NPS (m)
Air Inlet: 1/4″ NPS (m)
Weight: 28 pz.
Construction: Drop-Forged Aluminum
Colors: Black
