Galvanized lid and tank shell. Disposable liners are available for ease of cleaning. The following configurations are available:

• 83G-210 – Single regulator and no agitation
• 83G-220 – Double regulator and no agitation
• 83G-211 – Single regulator and direct drive agitator
• 83G-221 – Double regulator and direct drive agitator
• 83G-213 – Single regulator and indirect drive agitator

Related Links

• 2 Gallon Galvanized tank Service information
• 2 Gallon Galvanized tank Sales Information

Specifications:
Family:Galvanized Tanks
Type:Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Air In: Air Inlet – 1/4″ NPS
Fluid Out: Fluid Outlet – 3/8″ NPS

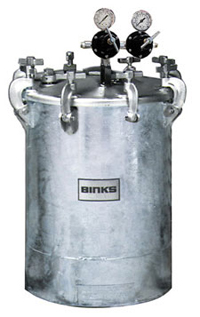

Capacity:2.8 Gallons – 83G-221 shown
Fits Pail Size: 1 Gallon Pail
Regulation: Single or Double
Agitator:None, Standard (direct), or Optional (indirect)
Liners:PTL-78-K10 or K60
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-435

Galvanized lid and tank shell. Disposable liners are available for ease of cleaning. The following configurations are available:

• 83G-510 – Single regulator and no agitation
• 83G-520 – Double regulator and no agitation
• 83G-513 – Single regulator and indirect drive agitator
• 83G-523 – Double regulator and indirect drive agitator

Related Links

• 5 Gallon Galvanized tank Service information
• 5 Gallon Galvanized tank Sales Information

Specifications:
Family:Galvanized Tanks
Type:Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Air In: Air Inlet = 1/4″ NPS
Fluid Out: Fluid Outlet = 3/8″ NPS

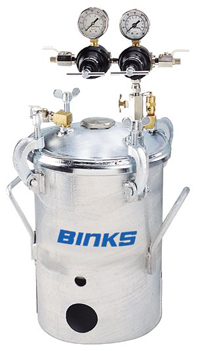

Capacity:9.8 Gallons – 83G-520
Fits Pail Size: 5 Gallon Pails
Regulation: Single or Double
Agitator:None, Standard (Indirect), Optional (Reciprocating)
Liners:PTL-408-K20
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443

Galvanized lid and tank shell. Disposable liner kits are also available for pressure tanks. The following configurations are available:

• 83G-1010 – Single regulator and no agitation
• 83G-1020 – Double regulator and no agitation
• 83G-1013 – Single regulator and indirect drive agitator
• 83G-1023 – Double regulator and indirect drive agitator

Related Links

• 10 Gallon Galvanized tank Service information
• 10 Gallon Galvanized tank Sales Information

Specifications:
Part Number: 83G-10XX Series
Family:Galvanized Tanks
Type:Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Fluid Out: Fluid Outlet = 3/8″ NPS
Capacity:11.8 Gallons 83G-1023 shown
Regulation: Single or Double
Agitator:Standard (Indirect), or none
Liners:PTL-412-K8
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443

Galvanized lid and tank shell. Disposable liners available for ease of cleaning. The following configurations are available:

• 83G-1500 – No regulation and no agitation
• 83G-1510 – Single regulator and no agitation
• 83G-1520 – Double regulator and no agitation
• 83G-1513 – Single regulator and indirect drive agitator
• 83G-1523 – Double regulators and indirect drive agitator

Related Links

• 15 Gallon Galvanized Service information
• 15 Gallon Galvanized Sales Information

Specifications:
Part Number: 83G-15XX Series
Family:Galvanized Tanks
Type:Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Fluid Out: 3/8″ NPS

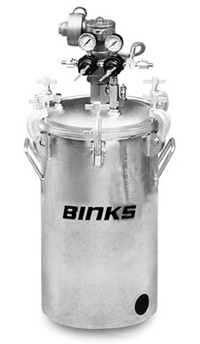

Capacity:19.8 Gallons – 83G-1523 shown
Regulation: Single, Double, or none
Agitator:Standard (Indirect), or none
Liners:: PTL-415-K10
Bottom Outlet: Bottom Outlet Conversion Kit Available, order QMS-443

Large capacity 30 gallon galvanized tank with single regulator. Order optional stainless steel fitted inner containers separately. The following configurations are available:

• • 83-5801 – Single regulator and no agitation
• • 83-5807 – Single regulator and indirect drive agitator
• • 83-4229 – Bottom outlet kit, order separately
• • 83-1569 – Stainless steel inner container for top outlet tanks
• • 83-2230 – Stainless steel inner container for bottom outlet tanks

Related Links

• 30 Gallon Galvanized tank Service information
• 30 Gallon Galvanized tank Sales information

Specifications:
Part Number: 83-5801 or 83-5807
Family:Galvanized Tanks
Type:Pressure Tank
Max Output Pressure: 110 psi maximum working pressure
Wetted Materials: Galvanized
Fluid Out: 3/8″ NPS
Capacity:: 30 Gallon
Regulation: Single Regulation
Agitator:Indirect drive agitator, or none
Liners:Order Stainless Steel Liners separately
Weight:250 to 370 lbs (estimated)

Large capacity 60 gallon galvanized shell and hot tin dipped head with single regulator. Order stainless steel fitted iner containers separately.

The following configurations are available:

• 83-5701 – Single regulator and no agitation
• 83-5707 – Single regulator and indirect drive agitator
• 83-4230 – Bottom Outlet Kit
• 83-1581 – Stainless steel inner container for top outlet tank
• 83-2229 – Stainless steel inner container for bottom outlet tank

Related Links

• 60 Gallon Galvanized tank Service Information
• 60 Gallon Galvanized tank Sales Information

Specifications:
Name: 60 Gallon Standard Galvanized Units
Part Number: 83-5701 and 83-5707
Family:Galvanized Tanks
Type:: Pressure Tank
Max Output Pressure: 110 psi maximum working pressure
Wetted Materials: Galvanized lid and tank shell
Air In: 1/4″ NPS
Fluid Out: : 3/8″ NPS
Capacity:60 gallon
Regulation: Single Regulation
Agitator:Indirect drive agitator, or none
Liners:Optional SS Liners available (Order Separately)
Bottom Outlet:Bottom Outlet Kits Available
Weight:335 to 370 lbs.
