Pressure Cups

KB II Series 2-quart cups feature a “pistol grip” carrying handle, and right- or left-handed design for comfort and ease of handling. An easy-open lid and wide cup mouth allow for fast filling and cleanup. KB II Series cups also feature a solvent-resistant check valve, a 0-30 psi air gauge, and a wide base for greater stability. KB II Cups are supplied with disposable cup liners, which reduce clean-up and solvent use. The unique lid liner also protects the underside of the lid, preventing check valve problems. Order KK-5051 disposable cup liner kit (20 each).

Related Links

• KB-555 Pressure Cup Service Manual

Specifications:
Style:  pressure feed
Material:  aluminum
Air Inlet:  1/4″ NPS (M)
Capacity:  2 qt.
Fluid Connection:  3/8″ NPS (M)
Cup Number:  KB-422
Fluid Pressure:  2-30 psi

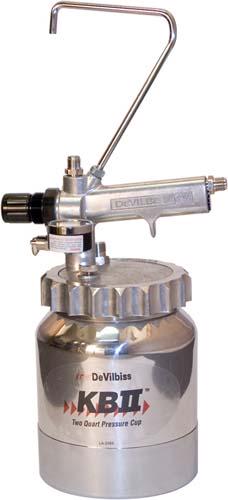

2 Quart Stainless Steel Pressure Cup

KB II Series 2-quart cups feature a “pistol grip” carrying handle, and right- or left-handed design for comfort and ease of handling. An easy-open lid and wide cup mouth allow for fast filling and cleanup. KB II Series cups also feature a solvent-resistant check valve, a 0-30 psi air gauge, and a wide base for greater stability. KB II Cups are supplied with disposable cup liners, which reduce clean-up and solvent use. The unique lid liner also protects the underside of the lid, preventing check valve problems. Order KK-5051 disposable cup liner kit (20 each).

Related Links

• KB-545-SS Pressure Cup Service Manual

Specifications:
Style:  pressure feed
Material:  stainless steel
Air Inlet:  1/4″ NPS (M)
Capacity:  2 qt.
Fluid Connection:  3/8″ NPS (M)
Cup Number:  KB-442
Fluid Pressure:  2-30 psi

1 Quart Stainless Steel Low Pressure Cup

Stainless steel 1-quart low pressure. Requires KK-4980 for cup air regulation (order separately).

Related Links

• TSC-591 SS Low Pressure Cup Service Manual

Specifications:
Style:  pressure feed
Material:  stainless steel
Capacity:  1 qt.
Fluid Connection:  3/8″ NPS (F)
Cup Number:  TSC-400
Ordering:  Order KK-4980 Regulator Kit in addition to the cup.

1-Quart Aluminum Suction Cup

Aluminum suction cups incorporate a two-position valve, which allows for operation as a “drip-free” cup or as a conventional suction feed cup. Smooth metal surfaces make cleanup and changeovers fast and easy. For use with all suction feed spray guns.

Related Links

• TGC-545 Suction Cup Service Manual

Specifications:
Style:  suction feed
Material:  Aluminum
Capacity:  1 qt.
Fluid Connection:  3/8″ NPS (F)
Cup Number:  KR-428-2

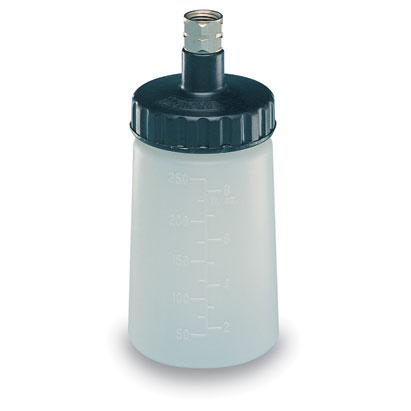

8oz Polyethylene Suction Cup

This 8 oz. cup combines an engineered resin lid with a translucent polyethylene cup that lets you see the liquid level. Lightweight and easy to clean, the non-staining cup has molded-in graduations for mixing ratios. Compatible with all solvents, it fits any suction feed gun with 1/4″ NPS threads. Use an AD-404 adapter to adapt to spray guns with 3/8″ NPS (M) inlets.

Related Links

• TGS-503 Service Manual

Specifications:
Style:  suction feed
Material:  Polyethylene
Capacity:  8 oz.
Fluid Connection:  1/4″ NPS (F)
Cup Number:  TGS-406 for cup and cover assembly

GFC-502
1 Liter Aluminum Gravity Feed Cup

DeVilbiss gravity feed cups are made of strong, lightweight acetal, or aluminum for durability. In addition, an integral drip check in the cup lid virtually eliminates leaks from the vent hole. These cups can be used with E-Z Liner® disposable cup liners, which reduce clean-up time, solvent use, and also allow upside-down spraying. Order liner kit OMX-70-K48. Can be used with GFG, GTI and EXL gravity feed spray guns.

Related Links

• GFC-502 Service Manual

Specifications:
Style:  gravity feed
Material:  aluminum
Capacity:  32 oz.
Fluid Connection:  3/8″ BSP (M)
Cup Number:  n/a

20oz. Acetal Gravity Feed Cup

DeVilbiss gravity feed cups are made of strong, lightweight acetal, or aluminum for durability. In addition, an integral drip check in the cup lid virtually eliminates leaks from the vent hole. These cups can be used with E-Z Liner® disposable cup liners, which reduce clean-up time, solvent use, and also allow upside-down spraying. Order liner kit OMX-70-K48. Can be used with GFG, GTI and EXL gravity feed spray guns.

Related Links

• GFC-501 Service Manual

Specifications:
Style:  gravity feed
Material:  Acetal
Capacity:  20 oz.
Fluid Connection:  3/8″ BSP (M)
Cup Number:  n/a
