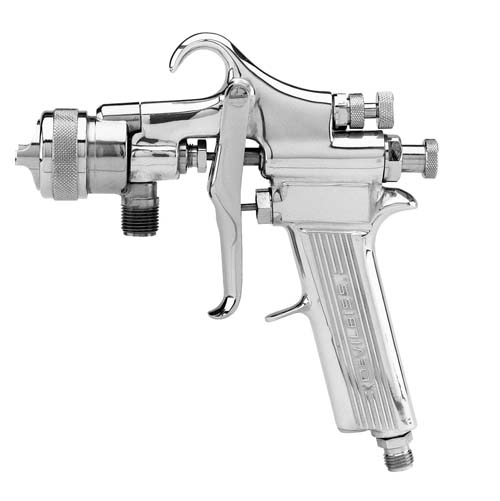

Combining a drop forged aluminum body with a forged removable spray head, the MBC-510 spray gun is ideal for applications that require maximum output and quick changeovers. Removable spray head allows for reduced downtime on nozzle combination changeovers. MBC spray guns have nickel-plated brass fluid passages and 400-grade stainless steel fluid tip and needle.

Related Links

MBC-510 Service Manual

Specifications:
Body: Drop forged aluminum
Weight: 27 oz (768 gr) with air cap and ring
Air Inlet: 1/4″ NPS (M)
Fluid Inlet: 3/8″ NPS (M)
Fluid Passages: Nickel-plated brass
Feed Type: Pressure feed, Suction feed (EX)
Gun Repair Kit: KK-4058-1
