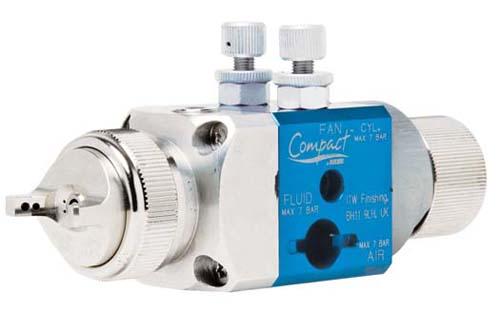

Compact Automatic I

The DeVilbiss Compact gun allows you to maintain EPA compliance and produce a superb finish. Built to provide outstanding coating atomization, the “Blue” Compact can handle all types of solvent and waternborne materials. High performance is coupled with a gun body light in weight and designed for operator comfort to increase productivity.

Related Links

• Compact Brochure
• Compact Automatic I Service Manual

The DeVilbiss Compact Automatic X has the following features

• Wide range of air caps
• Removable stainless steel spray head for fast and easy maintenance
• Control of spray performance and fluid flow is unequalled with the fluid adjusting knob
• Stainless steel passages (for waterborne and solvent based materials)
• Independent fan, atomizing and triggering air, vital for robotic and automatic spray machine applications

Specifications:
Model:  CMAX-xxx Compact Automatic “X” (user selects)
Fluid Inlet:  1/4″ BSPP (F)
Air Inlet:  1/4″ BSPP (F)
Cylinder Air Inlet:  1/8″ BSPP (F)
Max. Temperature in Use:  160°F (70°C)
Gun Weight:  1.44 lbs. (656 gms)
Construction:  Aluminum hard anodized
Tip/Needle/Sprayhead:  303 gr. stainless steel
