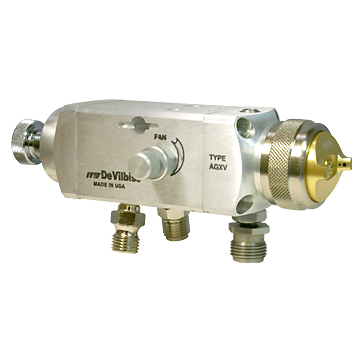

Designed for use with robots, automatic machines and stationary mounting, the AGXV Automatic spray gun is built to withstand the harsh conditions common to automatic spray finishing applications. Only two moving parts for greater reliability and easier maintenance. Patented Teflon needle packings are spring loaded for extended service. Abrasive fluid packing available as an option for more abrasive coatings. Detachable spray head for fast needle packing replacement. Circulating capability standard. Optional remote fan control.

Related Links

AGXV-540 Service Manual

Specifications:
Body:  Machined aluminum
Weight:  26 oz (728 gr) without mounting stud,30 oz (840 gr) with mounting stud
Air Inlet:  1/4″ NPS (M)
Fluid Inlet:  3/8″ NPS (M)
Fluid Passages:  300 grade stainless steel
Feed Type:  Pressure feed
Gun Repair Kit:  KK-4992-1
