All Stainless Steel lid tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:

• 83S-200 – No regulation and no agitation
• 83S-210 – Single regulator and no agitation
• 83S-220 – Double regulator and no agitation
• 83S-223 – Double regulator and optional indirect drive agitator
• 83S-211 – Single regulator and direct drive agitator
• 83S-221 – Double regulator and direct drive agitator
• 83S-213 – Single regulator and optional indirect drive agitator

Related Links

• 2 Gallon Stainless Steel Tank Service Information
• 2 Gallon Stainless Steel Tank Sales Information

Specifications:
Part Number:  83S-2XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  Stainless Steel Lid, Wetted Lid parts, stainless steel tank shell
Air In:  Air Inlet = 1/4″ NPS
Fluid Out:  Fluid Outlet = 3/8″ NPS

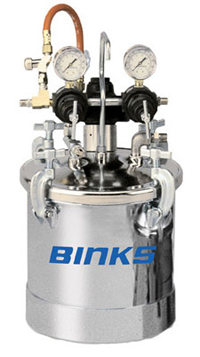

Capacity: 2.8 Gallons – 83S-221 shown
Fits Pail Size:  1 Gallon
Regulation: Single, Double, or none
Agitator: Optional (Indirect), Standard (Direct)
Liners:  PT-78-K10 or K60
Bottom Outlet:  Bottom Outlet Conversion Kit Available order QMS-435

All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:

• 83S-500 – No regulation and no agitation
• 83S-510 – Single regulator and no agitation
• 83S-520 – Double regulator and no agitation
• 83S-513 – Single regulator and indirect drive agitator
• 83S-523 – Double regulator and indirect drive agitator
• 83S-533 – Single Xtra sensitive regulator and optional indirect drive agitator

Related Links

• 5 Gallon Stainless Steel tank Service Information
• 5 Gallon Stainless Steel tank Sales Information

Specifications:
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Air In:  Air Inlet = 1/4″ NPS
Fluid Out:  Fluid Outlet = 3/8″ NPS

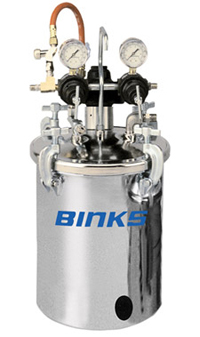

Capacity: 9.8 Gallons – 83S-521 shown
Fits Pail Size:  5 Gallon Pails
Regulation: Single, Double, Extra-Sensitive or none
Agitator: Standard (Indirect), or none
Liners:  PTL-408-K20
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443

All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:

• 83S-1010 – Single regulator and no agitation
• 83S-1020 – Double regulator and no agitation
• 83S-1013 – Single regulator and indirect drive agitator
• 83S-1023 – Double regulator and indirect drive agitator

Related Links

• 10 Gallon Stainless Steel tank Service Information
• 10 Gallon Stainless Steel tank Sales Information

Specifications:
Part Number:  83S-10XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Air In:  Air Inlet = 1/4″ NPS
Fluid Out:  Fluid Outlet = 3/8″ NPS
Capacity: 11.8 Gallons – 83S-1023 shown
Regulation: Single, Double, None
Agitator: Standard (Indirect), or none
Liners:  PTL-412-K8
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443

All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:

• 83S-1510 – Single regulator and no agitation
• 83S-1520 – Double regulator and no agitation
• 83S-1513 – Single regulator and direct drive agitator
• 83S-1523 – Double regulator and direct drive agitator

Related Links

• 15 Gallon Stainless Steel tank Service Information
• 15 Gallon Stainless Steel tank Sales Information

Specifications:
Part Number:  83S-15XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Fluid Out:  Fluid Outlet = 3/8″ NPS

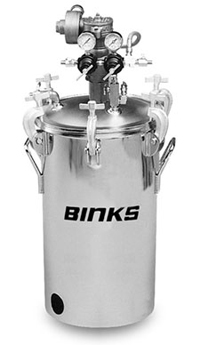

Capacity: 19.8 Gallons – 83S-1523 shown
Regulation: Single or Double
Agitator: Standard, or none
Liners:  PTL-415-K10 Bottom
Outlet: Bottom Outlet Conversion Kit Available order QMS-443

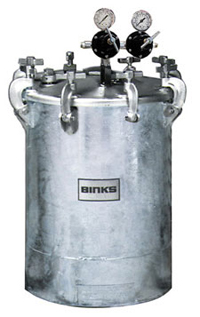

Large capacity 30 gallon galvanized shell, hot tin dipped head with single regulator. Order optional stainless steel fitted inner containers separately.

The following configurations are available:

• 83-5873 – Single regulator, no agitator, top outlet
• 83-5879 – Single regulator, indirect drive agitator, top outlet
• 83-4229 – Bottom outlet kit
• 83-1569 – Stainless steel inner container for top outlet tanks
• 83-2330 – Stainless steel inner container for bottom outlet tanks

Related Links

• 30 Gallon Stainless Steel tank Service Information
• 30 Gallon Stainless Steel tank Sales Information

Large capacity 60 gallon galvanized shell and hot tin dipped head. Order optional stainless steel fitted inner containers separately.

The following configurations are available:

• 83-5773 – 1 regulator and no agitation
• 83-5779 – 1 regulator and indirect drive agitator
• 83-4230 – Bottom outlit kit
• 83-1582 – Stainless steel inner container for top outlet tank
• 83-2229 – Stainless steel inner container for bottom outlet tank

Related Links

• 60 Gallon Stainless Steel tank Service Information
• 60 Gallon Stainless Steel tank Sales Information

Specifications:
Part Number:  83-5773, 83-5779
Family:  Stainless steel fitted
Type:  Pressure Tank
Max Output Pressure:  110 psi maximum working pressure
Wetted Materials:  hot tin dipped tank head, SS wetted parts, Order Optional Stainless Steel Liners Separately
Fluid Out:  3/8″ NPS
Capacity: 60 Gallon
Regulation: Single Regulation
Agitator: Indirect drive agitator, or none
Liners:  Order Stainless Steel Liners separately
Weight: 335 to 370 lbs (estimated)
