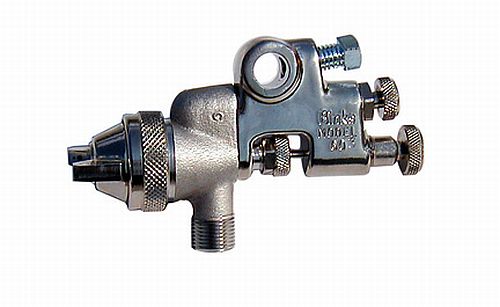

The Model 603 is a standard duty gun for continuous spraying operations. The fluid needle sleeve always remains open. Some of its features are a drop forged aluminum body, stainless steel head, fluid needle and fluid nozzle and adjustable spray pattern. It is recommended for use with corrosive fluids and paint, as well as commonly used.

RELATED LINKS

Model 603 Sales Information
Model 603 Service Information

Specifications:
Name: Model 603
Part Number: 6473
Gun Category: Conventional
Gun Type: Automatic
Fluid Inlets: 3/8″ NPS (m)
Max. Pressure: 100 PSI/6.8 Bar
Air Inlet: 1/4″ NPS (m)
Cylinder Air Inlet: 1/4″ NPS (m)
Weight: 15 oz.
Construction: Drop-Forged Aluminum
Colors: Graphite
