COAST INDUSTRIAL SYSTEMS, INC.

PRODUCTS

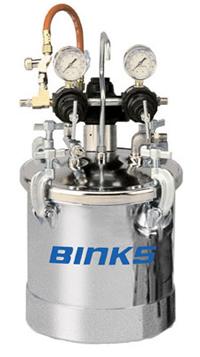

2 Gallon Stainless Steel


All Stainless Steel lid tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:



  • 83S-200 - No regulation and no agitation
  • 83S-210 - Single regulator and no agitation
  • 83S-220 - Double regulator and no agitation
  • 83S-223 - Double regulator and optional indirect drive agitator
  • 83S-211 - Single regulator and direct drive agitator
  • 83S-221 - Double regulator and direct drive agitator
  • 83S-213 - Single regulator and optional indirect drive agitator



Related Links Specifications:
Part Number:  83S-2XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  Stainless Steel Lid, Wetted Lid parts, stainless steel tank shell
Air In:  Air Inlet = 1/4" NPS
Fluid Out:  Fluid Outlet = 3/8" NPS
Capacity: 2.8 Gallons - 83S-221 shown
Fits Pail Size:  1 Gallon
Regulation: Single, Double, or none
Agitator: Optional (Indirect), Standard (Direct)
Liners:  PT-78-K10 or K60
Bottom Outlet:  Bottom Outlet Conversion Kit Available order QMS-435

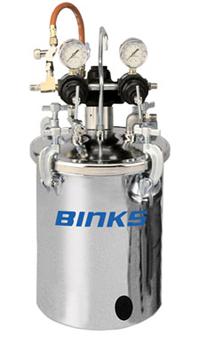

5 Gallon Stainless Steel


All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:



  • 83S-500 - No regulation and no agitation
  • 83S-510 - Single regulator and no agitation
  • 83S-520 - Double regulator and no agitation
  • 83S-513 - Single regulator and indirect drive agitator
  • 83S-523 - Double regulator and indirect drive agitator
  • 83S-533 - Single Xtra sensitive regulator and optional indirect drive agitator



Related Links Specifications:
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Air In:  Air Inlet = 1/4" NPS
Fluid Out:  Fluid Outlet = 3/8" NPS
Capacity: 9.8 Gallons - 83S-521 shown
Fits Pail Size:  5 Gallon Pails
Regulation: Single, Double, Extra-Sensitive or none
Agitator: Standard (Indirect), or none
Liners:  PTL-408-K20
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443


10 Gallon Stainless Steel


All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:



  • 83S-1010 - Single regulator and no agitation
  • 83S-1020 - Double regulator and no agitation
  • 83S-1013 - Single regulator and indirect drive agitator
  • 83S-1023 - Double regulator and indirect drive agitator



Related Links Specifications:
Part Number:  83S-10XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Air In:  Air Inlet = 1/4" NPS
Fluid Out:  Fluid Outlet = 3/8" NPS
Capacity: 11.8 Gallons - 83S-1023 shown
Regulation: Single, Double, None
Agitator: Standard (Indirect), or none
Liners:  PTL-412-K8
Bottom Outlet: Bottom Outlet Conversion Kit Available order QMS-443

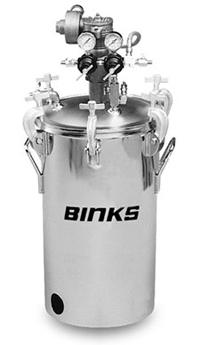

15 Gallon Stainless Steel


All Stainless Steel lid, tank, shell, wetted parts and fittings. Disposable liner kits are also available for ease of cleaning. The following configurations are available:



  • 83S-1510 - Single regulator and no agitation
  • 83S-1520 - Double regulator and no agitation
  • 83S-1513 - Single regulator and direct drive agitator
  • 83S-1523 - Double regulator and direct drive agitator



Related Links Specifications:
Part Number:  83S-15XX Series
Family:  Stainless Steel Tanks
Type:  Pressure Tank
Wetted Materials:  All Stainless Steel
Fluid Out:  Fluid Outlet = 3/8" NPS
Capacity: 19.8 Gallons - 83S-1523 shown
Regulation: Single or Double
Agitator: Standard, or none
Liners:  PTL-415-K10 Bottom
Outlet: Bottom Outlet Conversion Kit Available order QMS-443

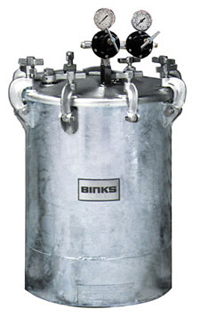

30 Gallon Stainless Steel


Large capacity 30 gallon galvanized shell, hot tin dipped head with single regulator. Order optional stainless steel fitted inner containers separately.

The following configurations are available:



  • 83-5873 - Single regulator, no agitator, top outlet
  • 83-5879 - Single regulator, indirect drive agitator, top outlet
  • 83-4229 - Bottom outlet kit
  • 83-1569 - Stainless steel inner container for top outlet tanks
  • 83-2330 - Stainless steel inner container for bottom outlet tanks



Related Links


60 Gallon Stainless Steel


Large capacity 60 gallon galvanized shell and hot tin dipped head. Order optional stainless steel fitted inner containers separately.

The following configurations are available:



  • 83-5773 - 1 regulator and no agitation
  • 83-5779 - 1 regulator and indirect drive agitator
  • 83-4230 - Bottom outlit kit
  • 83-1582 - Stainless steel inner container for top outlet tank
  • 83-2229 - Stainless steel inner container for bottom outlet tank



Related Links Specifications:
Part Number:  83-5773, 83-5779
Family:  Stainless steel fitted
Type:  Pressure Tank
Max Output Pressure:  110 psi maximum working pressure
Wetted Materials:  hot tin dipped tank head, SS wetted parts, Order Optional Stainless Steel Liners Separately
Fluid Out:  3/8" NPS
Capacity: 60 Gallon
Regulation: Single Regulation
Agitator: Indirect drive agitator, or none
Liners:  Order Stainless Steel Liners separately
Weight: 335 to 370 lbs (estimated)
